Stainless Steel Manifold HKV2013AF with flow meters and end sets KFE90
×
![]()
Stainless Steel Manifold HKV2013AF with flow meters and end sets KFE90
Stainless Steel Manifold HKV2013AF with flow meters and end sets KFE90
Описание

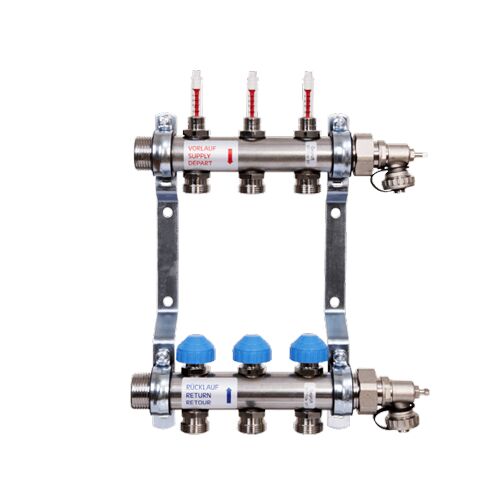

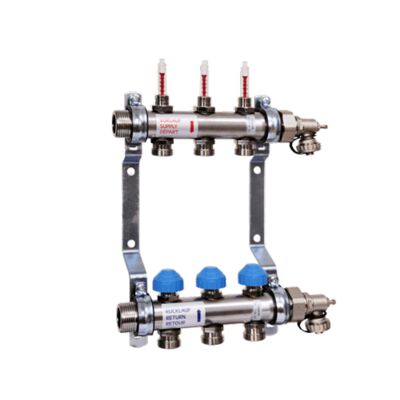

Stainless steel round pipe manifold. Flat-sealing male thread on both sides. Low installation depth. Connection nipple G ¾" with Eurocone. Pressure tested. The manifold can be adapted to the individual requirements on-site by using the modular accessories. Heating circuit connection ¾" M with Eurocone. Supply branch on the top. Ready-to-mount with brackets. EN1264 Compliant. End sets KFE90 enclosed. SUPPLY (top): Flowmeter 0 - 4 l/min with low pressure drop and shut-off function. RETURN (bottom): Control and shut-off valve with adaption M30 x 1,5 (closing point: 11,8 mm).
- Max. admissible operation temperature: +80 °C
- Min. admissible operation temperature: -10 °C *
- Max. admissible operation pressure: 10 bar
- Valves and fittings: Brass CW614N /CW617N
- Manifold Pipe: stainless steel 1.4301
- O-Rings: EPDM Elastomers
- Washers: EPDM Elastomers or Aramid AFM34
- Ball seat: PTFE
- Polymers: Impact- and temperature resistant
- Brackets: Steel, galvanized
