Smart thermostatic mixing valve e-ULTRAMIX®

Description

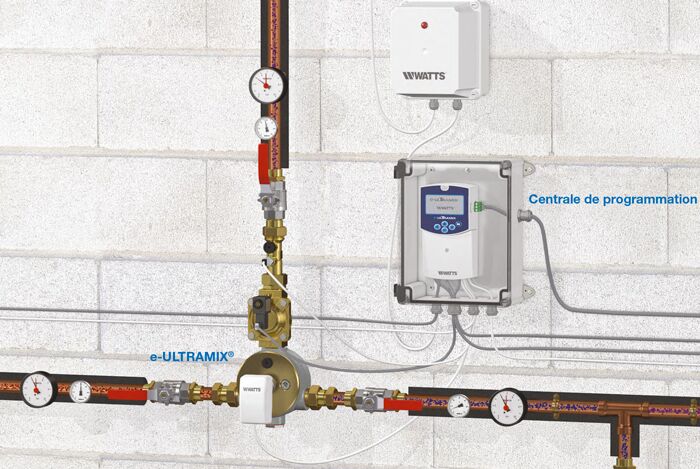

e-ULTRAMIX® is a next generation system, that electronically adjusts the mixed water temperature in multi use facilities. A solution against legionella and the risk of scalding. The electronic system features a smart control unit that programs automatic thermal treatment cycles, ensuring a safe and secure method of preventing any risk of legionella within the DHW system. Acting as a real time “electronic maintenance log”, the unit will control and record permanently temperature of mixed water, water loop, DHW production relating to the thermal treatment process, as well as the various notifications and alarms that may have been stored, providing a genuine sanitary monitoring record of the system.The data can be retrieved either via an SD card where all data would have been saved, or remotely by connecting to a Building Management System (MODBUS protocol) using a RS485 interface.

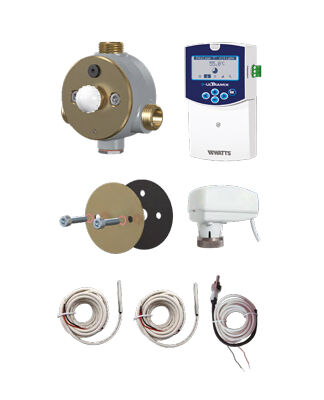

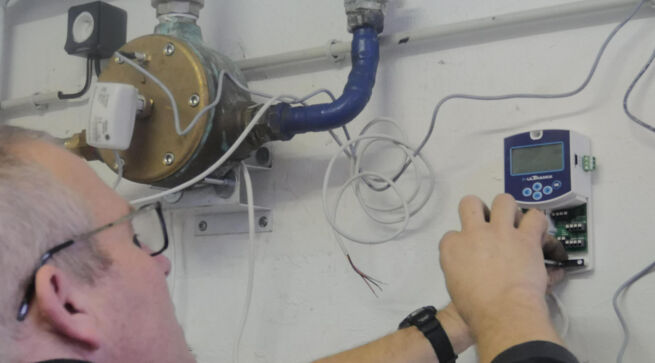

A full system: easy to install, use and maintain
Accurate temperature, instant response, guaranteed comfort
Automated and controlled disinfection: programmable via the smart control unit
Scalable system: upgrading an existing ULTRAMIX® installation or to equipping a new installation.
Service Continuity: in case of a power failure it maintains with precision the temperature of mixed water and manual adjustment is possible.
Traceable data: all data is saved to a micro SD card for subsequent records or interrogation (CSV format).
Compatible with Building Technical Management system: can be administered and monitored remotely (Modbus protocol).

Technical Features

Part no.

Type	part no.	Size	№ of users	*Flow range, l/min
e-ULTRAMIX	22TX91E37ELECV3	3/4"	1-7	3-56
e-ULTRAMIX	22TX92E37ELECV3	3/4"	1-10	3-80
e-ULTRAMIX	22TX93E37ELECV3	1"	1-15	3-120
e-ULTRAMIX	22TX94E37ELECV3	1.1/4"	1-21	5-175
e-ULTRAMIX	22TX95E37ELECV3	1.1/2"	1-32	5-260
e-ULTRAMIX	22TX96E37ELECV3	2"	1-50	6-400
